Create Azure File Share Using PowerShell

Azure file shares are just like other file shares, but stored in the cloud and backed by the Azure platform. Azure File shares support the industry standard Server Message Block (SMB) protocol, the Network File System (NFS) protocol (preview), and enables file sharing across multiple machines, applications, and instances. Today we will create a new File Share using powershell. So let’s go through the following steps.

Step 1 – Open Window Powershell, hopping you have already configured the PowerShell on your machine. If not configured yet please see our post Configure PowerShell For Microsoft Azure Az Module On Windows.

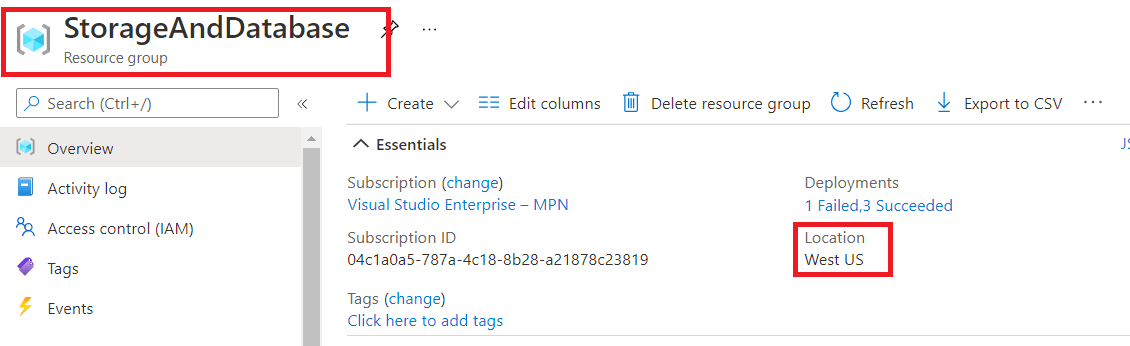

Step 2 – Create a resource group using following script if you don’t have one. In one of our previous demo we have already created the following resource group.

$resourceGroupName = "StorageAndDatabase"
$region = "westus"
New-AzResourceGroup -Name $resourceGroupName -Location $region | Out-Null

Step 3 – Let’s use following PowerShell command to get the required resource group.

$resourceGroup= Get-AzResourceGroup -Name StorageAndDatabase

Step 4 – Storage Account is a shared pool of storage we can use to deploy Azure file shares. So let’s create a Storage Account using New-AzStorageAccount cmdlet if you don’t have one.

$myStorageAcct = New-AzStorageAccount -ResourceGroupName $resourceGroup.ResourceGroupName -AccountName kjstorageaccount1 -Location westus -SkuName Standard_GRS

In one of our previous article, we have created one storage account ( kjstorageaccount1). Let’s get the existing storage account using following PowerShell cmdlet.

$myStorageAccount = Get-AzStorageAccount -ResourceGroupName $resourceGroup.ResourceGroupName -StorageAccountName "kjstorageaccount1"

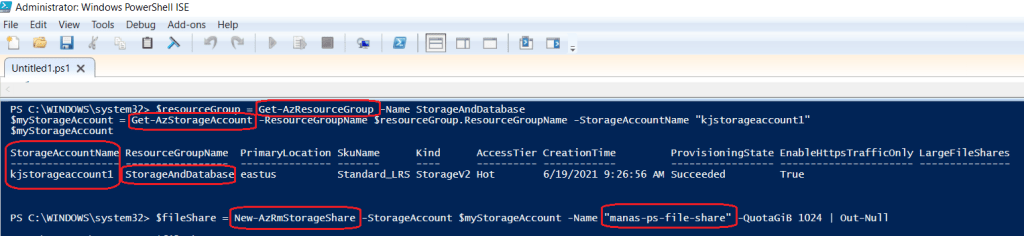

Step 5 – Now we can create our Azure file share using PowerShell. We can create a file share using the New-AzRmStorageShare cmdlet as showing in the following example.

$fileShare = New-AzRmStorageShare -StorageAccount $myStorageAccount -Name "manas-ps-file-share" -QuotaGiB 1024 | Out-Null

As we can see in the above figure one newly created File Share (manas-ps-file-share ) visible in Azure portal.
