Power Platform : Power Automate – Reading excel file

by ·

Complete Flow - Power Automate to read excel file
Complete Flow - Power Automate to read excel file

Hi All,

Greetings for the day!!!

One of my friend asked me how to read excel file through Power Automate. So I thought to explore it, small POC and sharing 🙂

In this article we will discuss how to read excel file using Power Automate

Details :

Excel File – Data should be in Table format

  • Excel file with data – in table format as shown in below
  • We have two columns – Name and Roll No

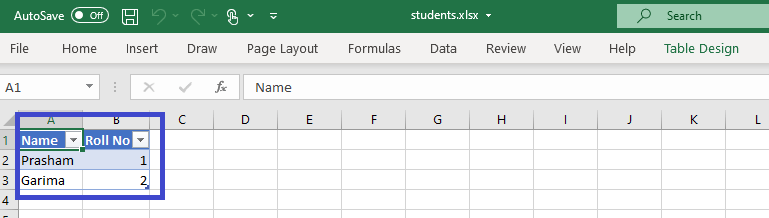

fig : Excel file - Table - with two columns
fig : Excel file – Table – with two columns – Name and Roll No
  • We need to convert our sheet in Table format if its not actually
  • To have selected data is part of Table – navigate to – Data >> From Table / Range option as shown in below fig

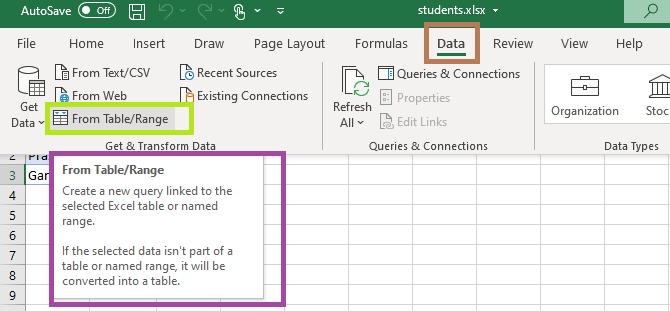

fig : Excel file - Data in Tabular format
fig : Excel file – Data in Tabular format

Power Automate – To read excel file

  • Navigate to Power Automate
  • We will create “Instant cloud flow” as shown in below fig
Power Automate - Creating "Instant cloud flow"
fig : Power Automate – Creating “Instant cloud flow”
  • Enter the flow details
    • Flow name – “Demo – Read Excel File Content”
    • Trigger – “Manually trigger a flow“
fig : Power Automate - Creating "Instant cloud flow"
fig : Power Automate – Creating “Instant cloud flow”
  • Search for “Excel”
  • Add action “List rows present in a table” to read all rows from excel as shown in below fig
fig : Power Automate - Adding an action - "List rows present in a table"
fig : Power Automate – Adding an action – “List rows present in a table”
  • In “List rows present in a table” action enter the following details
    • Location where our excel file located
      • OneDrive / SharePoint site library
      • Excel file
      • Table in excel file
    • Here in our case, I am storing excel file in SharePoint site document library
List rows present in a table action
fig : “List rows present in a table” action – entering details – Excel file location, File and Table in file
  • Once we have details in “List rows present in a table” action, we are ready to get the result
  • We will use “Apply to each” action to navigate through each row in excel file
  • From “Dynamic Content” select the “value” as shown in below fig
fig : Using "Apply to each" action to get the each rows columns values
fig : Using “Apply to each” action to get the each rows columns values
  • We will use “Compose” control to output the value of “Name” column as shown in below fig
fig : Power Automate - using "Compose" column to show the value under "Name" field
fig : Power Automate – using “Compose” column to show the value under “Name” field
  • We will “Test Flow” manually
fig : Power Automate - Testing flow
fig : Power Automate – Testing flow
  • Please navigate through steps – Test >> “Sign In” (if required) >> “Run Flow” >> “Done”
  • Once flow run successfully, we could see the output
List rows present in a table - action
fig : Power Automate – Flow ran successfully – Output of “List rows present in a table” action
  • Following is the downloaded output – it shows both the rows from the given excel
List rows present in a table action
fig : Power Automate – Flow ran successfully – Output of “List rows present in a table” action
  • “Apply to each” action output as shown in below fig
  • It shows two rows – and we are showing output of “Name” column
Compose action
fig : Power Automate – Displaying values of “Name” column using Compose action

Complete Flow – Power Automate to read excel file

Complete Flow - Power Automate to read excel file
fig : Complete Flow – Power Automate to read excel file

Thanks for reading !!! Please feel free to discuss / suggestions / share thoughts !!!

HAVE A GREAT TIME AHEAD !!! LIFE IS BEAUTIFUL 🙂
